- Rounded design, no sharp edges and visibile screws.
- Chrome plated and ground slide rod.
- Lapped cast iron slide rod bushing.
- Vulcanized rubber stops on carriage.
- Removable support cover for thickness gauge plate.
- Stainless steel slice deflector with bayonet fitting.
- Stainless steel screws and fittings.
- 49,5 mm distance between blade and motor.
- Bottom cover.
- Changeover electronic circuit 110-220-380 V single and three phase.
- Built in sharpening tool with bottom protection.
- Standard blade removal tool.
- Enclosed and sealed worm gear reduction unit. Oil bath lubrication.
- Automatic version not available.

Technical specifications

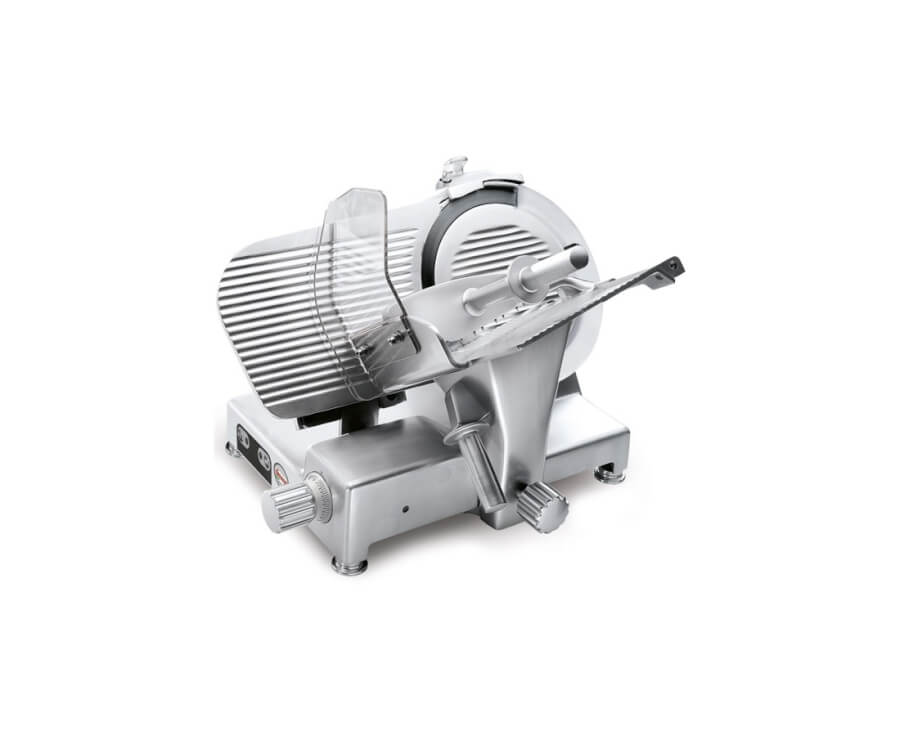

• Model: PALLADIO 300 TOP INGR.
• ø Blade: mm 300 - inch. 12
• Motor: watt 400 - Hp 0,54
• Cut thickness: mm 23
• Run of carriage: mm 310
• Hopper: mm 305x270
• A: mm 465
• B: mm 340
• C: mm 615
• D: mm 547
• E: mm 465
• F: mm 710
• G: mm 545
• L: mm 600
• X: mm 270
• Y: mm 190
• H: mm 240
• W: mm 220
• Net weight: kg 36
• Shipping: mm 760x640x700
• Gross weight: kg 45
• HS-CODE: 84385000
