- Anodized cast aluminum alloy
- Great distance between blade and motor for easy cleaning
- Ventilated motor
- Fan-cooled carriage motion motor with commercial-grade oil bath reduction
- Forged, hardened large thickness blades
- Carriage running on self-lubricating bushes and lapped pins
- Stainless steel screws and slice deflector
- Strong thickness gauge support
- Cast-in body sharpener assembly with 2 standard emery-wheels
- Compact dimensions but great cutting capacity
- Device for releasing the carriage on CE version
- Teflon coated or toothed blades are available on demand
- 25° blade inclination

Technical specifications

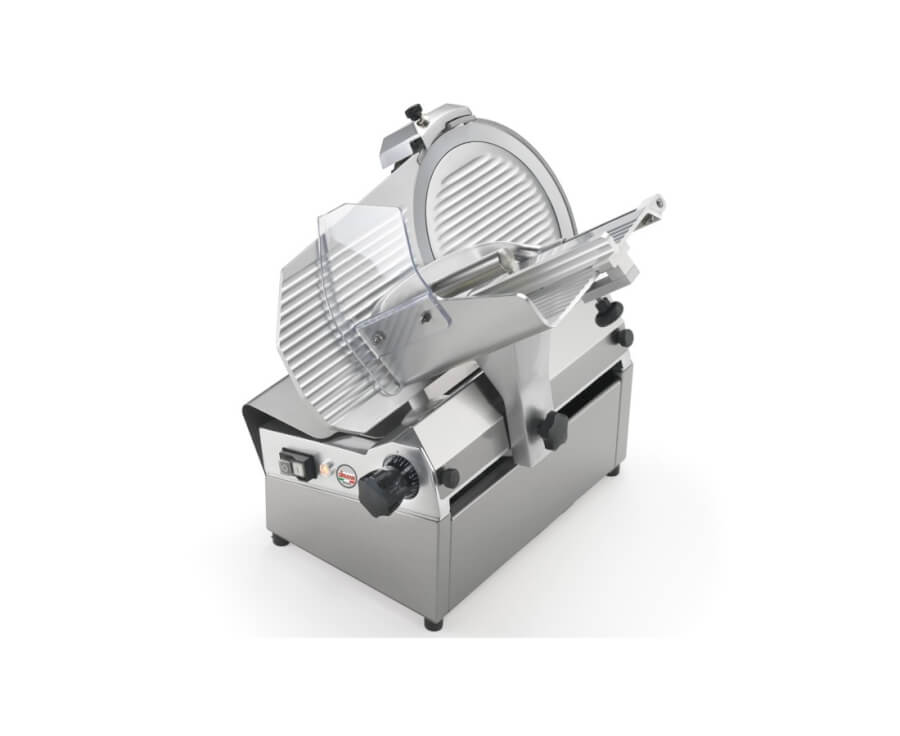

• Model: Mirra 300 Y09 Automec
• Blade: mm 300 - inch. 12
• Motor: watt 210+180 / Hp 0,29+0,24
• Cut thickness: mm 13
• Run of carriage: mm 285
• Hopper: mm 250x275
• A: mm 425
• B: mm 270
• C: mm 616
• D: mm 490
• E: mm 534
• F: mm 643
• G: mm 704
• X: mm 250
• Y: mm 185
• H: mm 185
• W: mm 225
• Net weight: Kg 31
• Shipping: mm 870x840x750
• Gross weight: Kg 46
• HS-CODE: 84385000
