- AISI 304 stainless steel construction. Can be sprayed.
- 2 indipendent IP x5 motors for grinder and mixer
- oil-bath, waterproof angular gear box
- safety microswitch on meat mixer cover
- air pistons open the cover
- IP 67 stainless steel controls (reverse available for grinder)
Grinding set:
- completely made of AISI 304 stainless steel
- designed for high performance
- stainless steel drive pin
- tempered steel worm pin
- grinding set and mixing arm can be easily disassembled without tools
- exclusive, patented plate detection system on 42
Standard accessories:
- stainless steel self-sharpening knife and 6 mm plate
- floor support with stainless steel wheels and brake
- worm and plate removing tool
- stainless steel splash guard
Optional:
- safety device for Ø>8mm plates
stainless steel 1/2 or total unger grinding set
FULL CONTROL:
- timer function
- reverse with timer for meat mixer
Optional connections for:
.pedal controls
.S - semi-automatic hamburger press attachment

Technical specifications

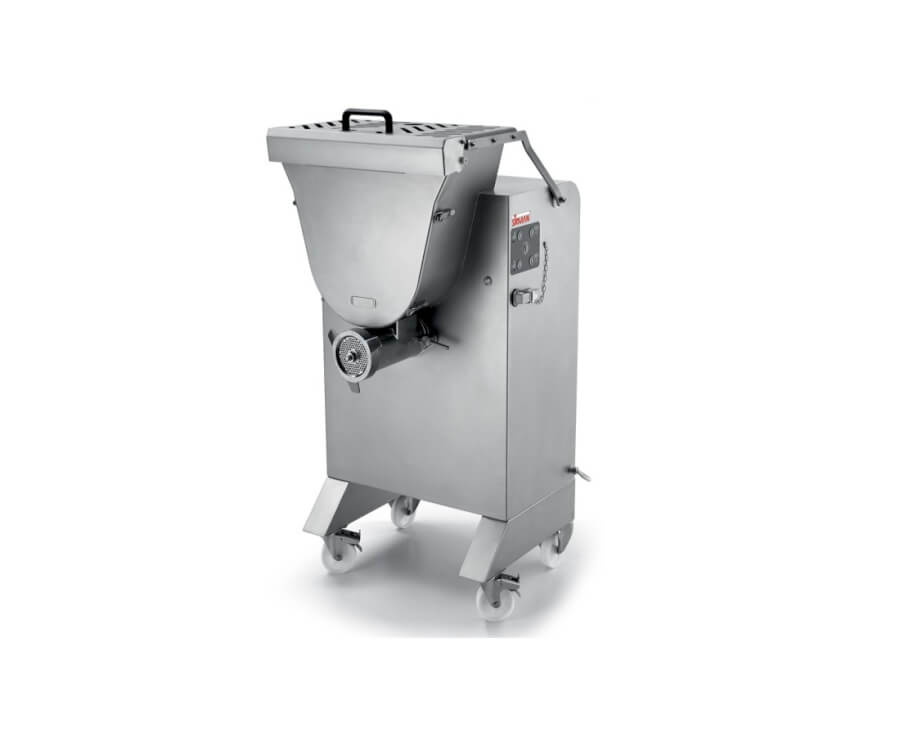

• Model: Master 30 Y12
• Power TC: watt 2940 - Hp 4
• Power IP: watt 1102 - Hp 1,5
• Power source: 3ph
• Tank capacity: kg 30 - lt 42
• Standard plate: ø mm 4,5
• Revolutions: rpm TC 186 / IP 30
• Output/h.: kg/h. 600-850
• A: mm 658
• B: mm 752
• C: mm 247
• D: mm 589
• E: mm 1243
• F: mm 1477
• Net weight: kg 140
• Shipping: mm 870x840x1700
• Gross weight: kg 165
• HS-CODE: 84385000
