- Innovative rounded design and no sharp edges or visible screws
- Chrome plated ground and lapped slide rod
- Lapped cast iron slide rod bushing
- Vulcanised rubber stops on carriage
- Removable support cover for thickness gauge plate
- Stainless steel slice deflector with snap-on bayonet fitting
- Stainless steel screws and fittings
- Bottom cover for accessing electrical components
- Changeover electronic circuit 110-220-380 V single and three-phase
- Built-in sharpening tool with bottom protection
- Aluminium knobs
- Aluminium telescopic feet with rubber base
- Stainless steel pushbuttons with IP67 protection rating
- Maintenance tool kit and demo CD
- 48 mm distance between blade and motor.

Technical specifications

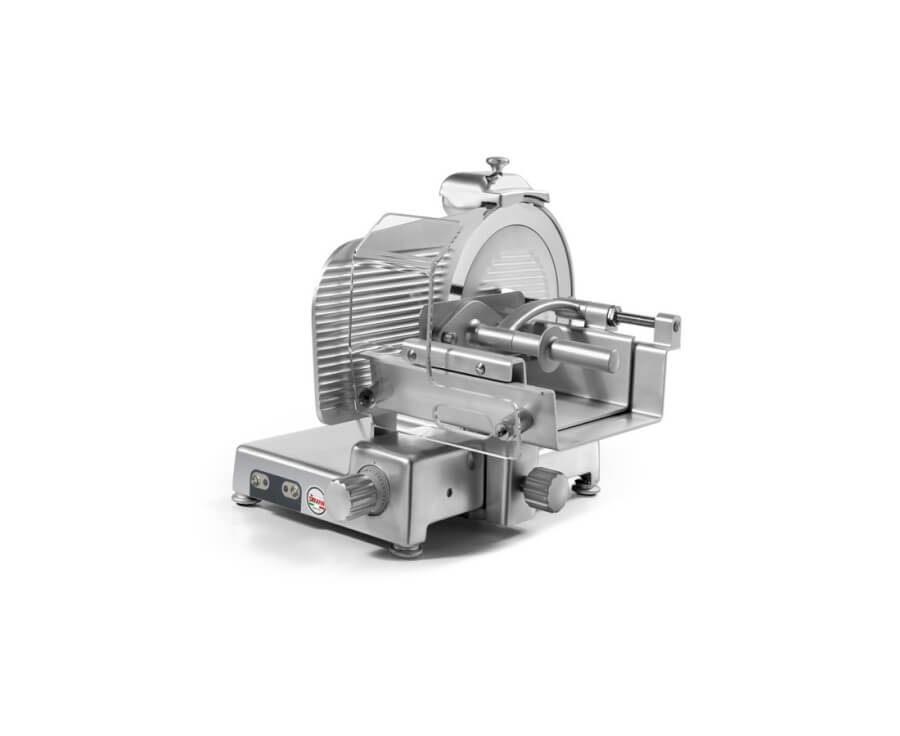

• Model: MANTEGNA 330 VCS TOP
• ø blade: mm 330 - inch. 13
• Motor: watt 275 - Hp 0,37
• Cut of thickness: mm 29
• Run of carriage: mm 310
• Hopper: mm 340x250
• A: mm 468
• B: mm 338
• D: mm 645
• C: mm 685
• E: mm 515
• F: mm 720
• G: mm 560
• L: mm 580
• X: mm 250
• Y: mm 235
• H: mm 235
• W: mm 235
• Net weight: kg 37
• Shipping: mm 870x840x750
• Gross weight: kg 53
• HS-CODE: 84385000
