- Innovative rounded design and no sharp edges or visible screws.
- Chrome plated ground and lapped slide rod.
- Lapped cast iron slide rod bushing.
- Vulcanised rubber stops on carriage.
- Removable support cover for thickness gauge plate.
- Stainless steel slice deflector with snap-on bayonet fitting
- Stainless steel screws and fittings.
- Bottom cover for accessing electrical components.
- Changeover electronic circuit 110-220-380 V single and three-phase.
- Built-in sharpening tool with bottom protection.
- Enclosed and sealed belt pulley.
- 48 mm distance between blade and motor.
- Standard blade removal tool.
- Aluminium knobs.
- Aluminium telescopic feet with rubber base.
- Stainless steel pushbuttons with IP67 protection rating.
- Maintenance tool kit.
- Specially required by the Northern European marketplace
- Product table designed to slice all types of products
- Removable aluminum end weight. Designed with grooves: nails underneath
- Avaialble with double articulating arm on end weight.

Technical specifications

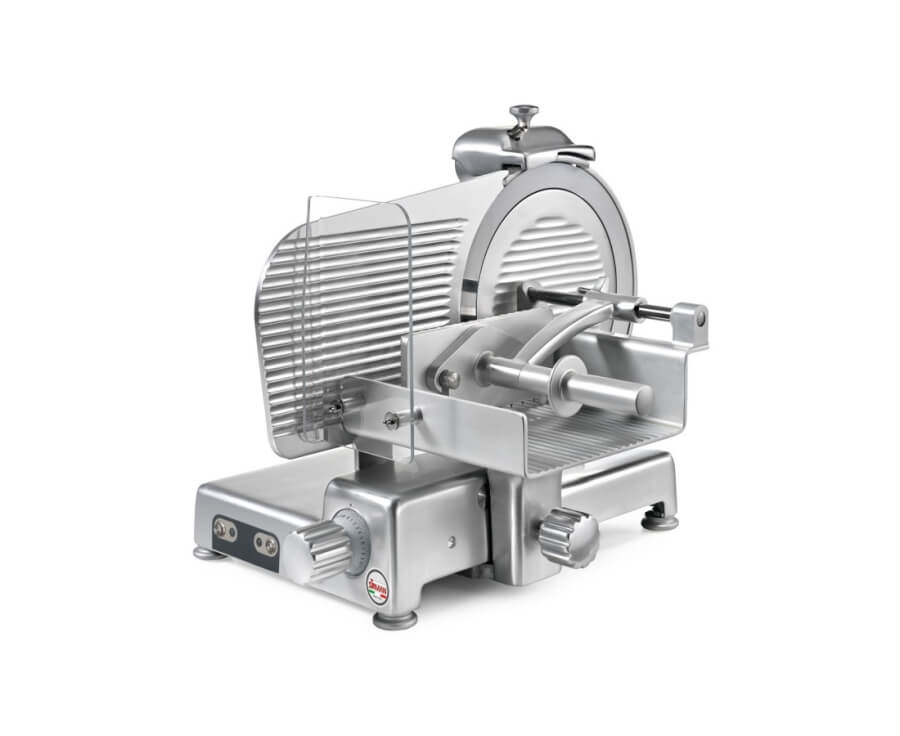

• Model: MANTEGNA 330 VCO TOP
• ø blade: mm 330 - inch. 13
• Motor: watt 275 - Hp 0,37
• Cut thickness: mm 29
• Run of carriage: mm 310
• Hopper: mm 280x260
• A: mm 468
• B: mm 338
• C: mm 645
• D: mm 652
• E: mm 515
• F: mm 677
• G: mm 520
• L: mm 585
• X: mm 260
• Y: mm 245
• H: mm 245
• W: mm 245
• Net weight: kg 36
• Shipping: mm 870x840x750
• Gross weight: kg 51
• HS-CODE: 84385000
