- Innovative rounded design and no sharp edges or visible screws
- Chrome plated ground and lapped slide rod
- Lapped cast iron slide rod bushing
- Vulcanised rubber stops on carriage
- Removable support cover for thickness gauge plate
- Stainless steel slice deflector with snap-on bayonet fitting
- Stainless steel screws and fittings
- Bottom cover for accessing electrical components
- Changeover electronic circuit 110-220-380 V single and three-phase
- Built-in sharpening tool with bottom protection
- Aluminium knobs
- Aluminium telescopic feet with rubber base
- Stainless steel pushbuttons with IP67 protection rating
- Maintenance tool kit.
- 48 mm distance between blade and motor.

Technical specifications

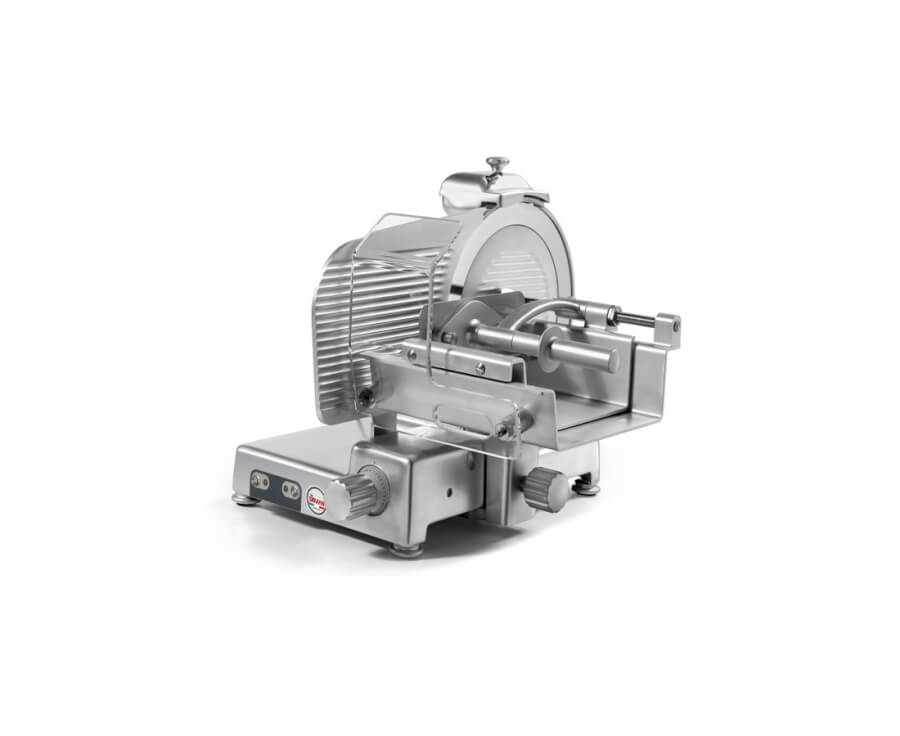

• Model: MANTEGNA 300 VCS TOP
• ø blade: mm 300 - inch. 12
• Motor: watt 275 - Hp 0,37
• Cut of thickness: mm 29
• Run of carriage: mm 310
• Hopper: mm 340x250
• A: mm 468
• B: mm 338
• C: mm 635
• D: mm 685
• E: mm 500
• F: mm 720
• G: mm 560
• L: mm 610
• X: mm 250
• Y: mm 225
• H: mm 225
• W: mm 225
• Net weight: kg 36
• Shipping: mm 870x840x750
• Gross weight: kg 52
• HS-CODE: 84385000
