- Innovative rounded design and no sharp edges or visible screws.
- Chrome plated ground and lapped slide rod.
- Lapped cast iron slide rod bushing.
- Vulcanised rubber stops on carriage.
- Removable support cover for thickness gauge plate.
- Stainless steel slice deflector with snap-on bayonet fitting.
- Stainless steel screws and fittings.
- Bottom cover for accessing electrical components.
- Changeover electronic circuit 110-220-380 V single and three-phase.
- Built-in sharpening tool with bottom protection.
- Easy to remove grease guard mounted along the thickness gauge plate.
- Plastic knob.
- Rubber feet.
- Buttons in insulated stainless steel (IP 67) in housing.
- 48 mm distance between blade and motor.

Technical specifications

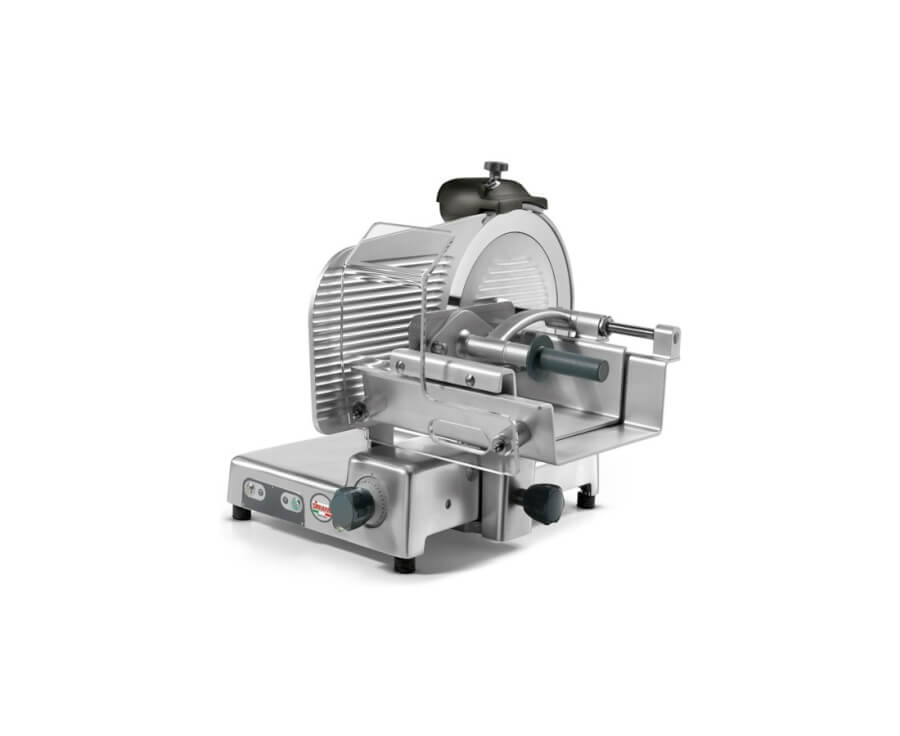

• Model: MANTEGNA 300 VCS
• ø blade: mm 300 - inch. 12
• Motor: watt 275 - Hp 0,37
• Cut of thickness: mm 29
• Run of carriage: mm 310
• Hopper: mm 340x250
• A: mm 468
• B: mm 338
• C: mm 635
• D: mm 685
• E: mm 500
• F: mm 720
• G: mm 560
• L: mm 610
• X: mm 250
• Y: mm 225
• H: mm 225
• W: mm 225
• Net weight: kg 36
• Shipping: mm 870x840x750
• Gross weight: kg 52
• HS-CODE: 84385000
