• Innovative rounded design and no sharp edges or visible screws.
• Chrome plated ground and lapped slide rod.
• Lapped cast iron slide rod bushing.
• Vulcanised rubber stops on carriage.
• Removable support cover for thickness gauge plate.
• Stainless steel slice deflector with snap-on bayonet fitting.
• Stainless steel screws and fittings.
• Bottom cover for accessing electrical components.
• Changeover electronic circuit 110-220-380 V single and three-phase
• Built-in sharpening tool with bottom protection
• Enclosed and sealed belt pulley
• 48 mm distance between blade and motor
• Standard blade removal tool
• Plastic knobs.
• Rubber feet .
• Buttons in insulated stainless steel (IP 67) in housing.
VCO
• Specially required by the Northern European marketplace.
• Product table designed to slice all types of products.
• Removable aluminum end weight. Designed with grooves: nails underneath.
• Avaialble with double articulating arm on end weight.

Technical specifications

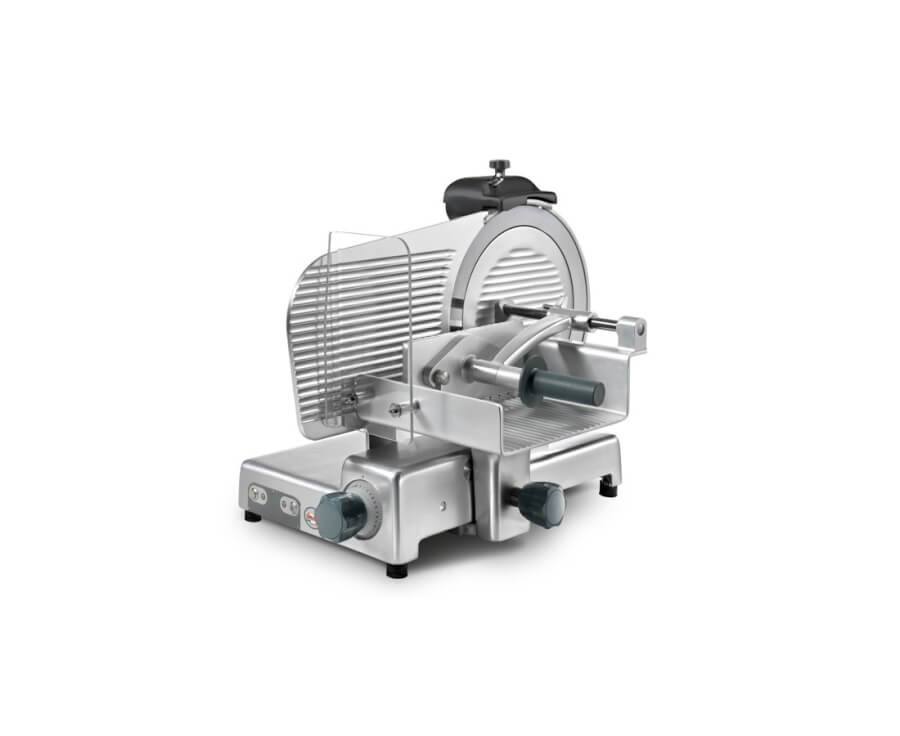

• Model: Mantegna 300 VCO
• ø blade: mm 300 - inch. 12
• Motor: watt 275 - Hp 0,37
• Cut thickness: mm 29
• Run of carriage: mm 310
• Hopper: mm 280x260
• A: mm 468
• B: mm 338
• C: mm 635
• D: mm 652
• E: mm 500
• F: mm 677
• G: mm 520
• L: mm 610
• X: mm 260
• Y: mm 230
• H: mm 230
• W: mm 230
• Net weight: kg 35
• Shipping: mm 870x840x750
• Gross weight: kg 50
• HS-CODE: 84385000
