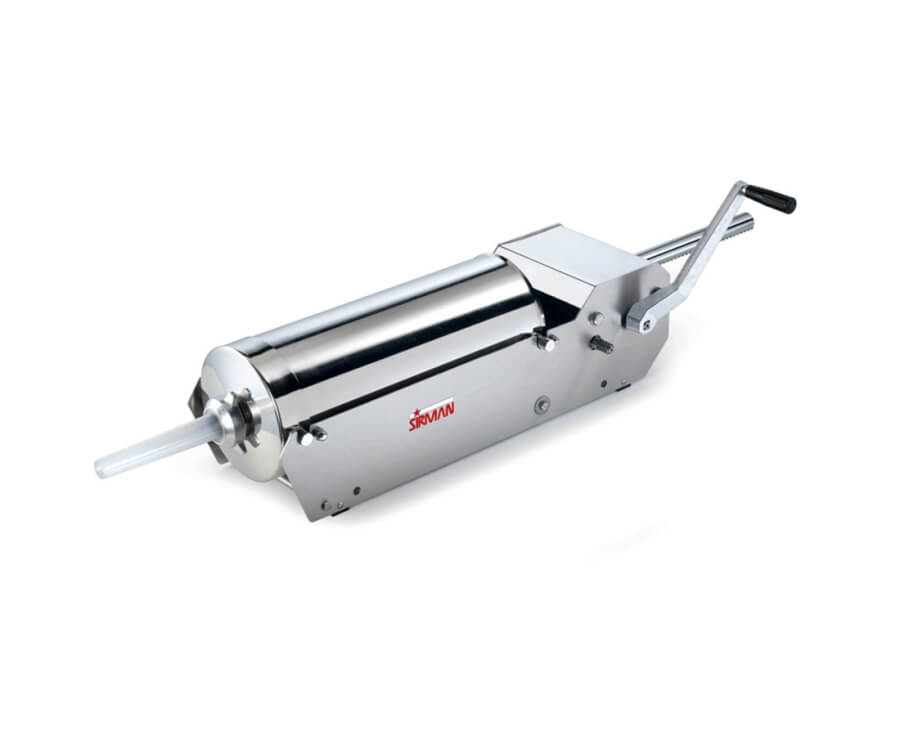

Sausage stuffers, manual


• Manual sausage stuffers made completely of stainless steel
• Hardened steel gears sliding on material plastic bushings, piston rack sliding on heavy-duty material plastic bushings to withstand the pressure of the hardest sausages
• 2-speed gear drive
• A three (3) polyethylene funnel set 3/8”- 5/8”- 1” comes standard
• Easy and fast breakdown for cleaning


FEATURES
Technical
• Complete stainless steel construction.
• Stainless steel 18/10 cylinder with no edge inside and no weld rests.
• Hardened steel gears sliding on bearings.
• System of forward-backward feeding with two speeds.
• The piston valve allows excess air to escape and closes when the piston touches the meat.
Sanitary
• Can be completely disassembled for an easy and accurate cleaning

Technical specifications

• Model: IS 16 X
• Cylinder capacity: lt 16
• Cylinder length: mm 500
• Cylinder diameter: ø mm 200
• Piston stroke: mm 560
• Funnel diameter: ø mm 10-18-25
• A: mm 240
• B: mm 575
• C: mm 810
• D: mm 250
• Net weight: kg 23,5
• Shipping: mm 890x310x280
• Gross weight: kg 24,5
• HS-CODE: 84385000
