Innovative rounded design and no sharp edges or visible screws.
Chrome plated ground and lapped slide rod.
Lapped cast iron slide rod bushing.
Vulcanised rubber stops on carriage.
Removable support cover for thickness gauge plate.
Stainless steel slice deflector with snap-on bayonet fitting.
Stainless steel screws and fittings.
Bottom cover for accessing electrical components.
Changeover electronic circuit 110-220-380 V single and three-phase
Built-in sharpening tool with bottom protection
Enclosed and sealed belt pulley
41 mm distance between blade and motor
Aluminium knobs.
Aluminium telescopic feet with rubber base.
S/steel pushbuttons with IP67 protection rating.
Easy to remove stainless steel meat grip arm.

Technical specifications

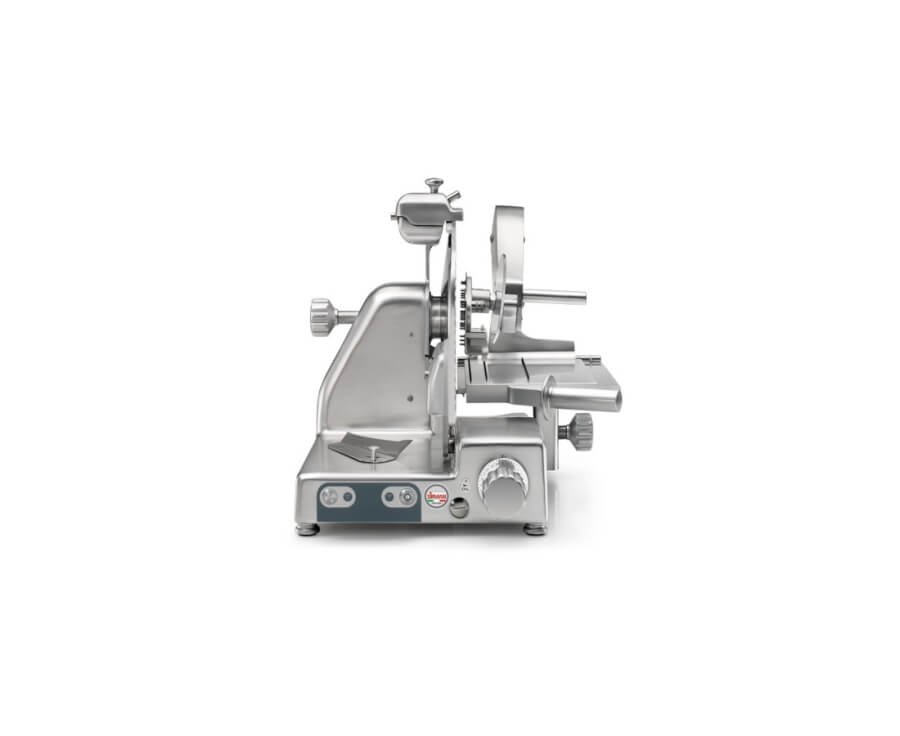

• Model: GIOTTO 275 BS1 TOP
• ø Blade: mm 275 - inch. 11
• Motor: watt 210 - Hp 0,29
• Cut thickness: mm 29
• Run of carriage: mm 275
• Hopper: mm 275x260
• A: mm 425
• B: mm 320
• C: mm 560
• D: mm 540
• E: mm 450
• F: mm 790
• G: mm 560
• L: mm 620
• X: mm 255
• Y: mm 205
• H: mm 205
• W: mm 205
• Net weight: kg 28
• Shipping: mm 800x600x520
• Gross weight: kg 31
• HS-CODE: 84385000
