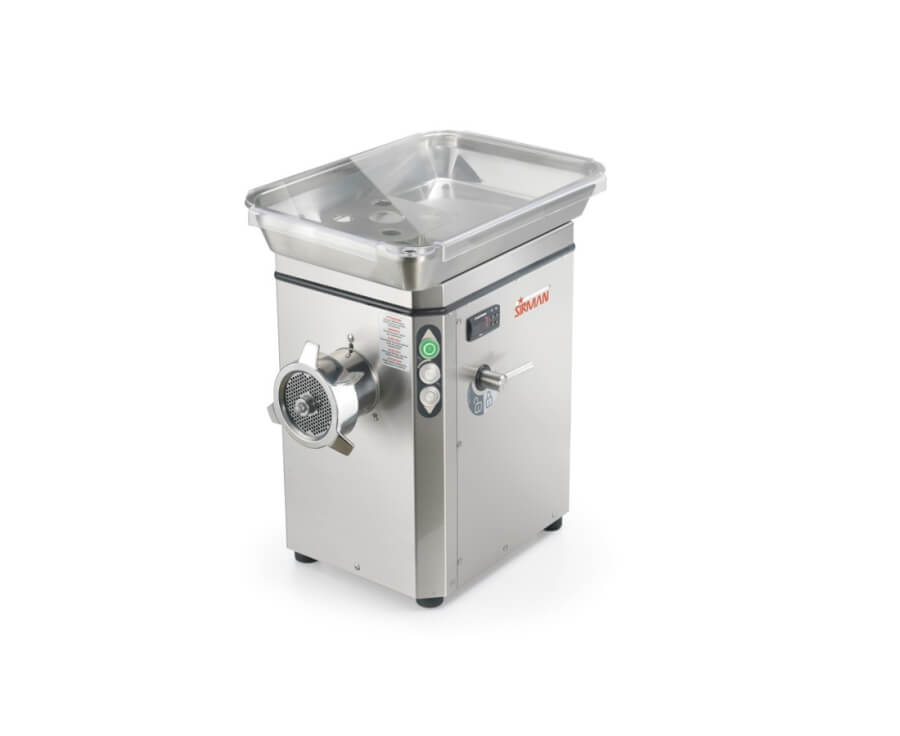

- Super-compact refrigerated meat grinder features a tall design that saves space on the worktop without compromising performance or efficiency
- R290 gas refrigerator
- Available also with hamburger press attachment and guard for die plates with holes larger than 8 mm
- Designed for simple maintenance, even in place, this model is ideal for butchers and supermarket meat counters
- Refrigeration on feed tray neck, mincing head and on the whole feed tray
- Plexiglass feed tray lid, standard
Optionals:
- Half/total unger system
- Patty former M
- Stuffer kit
- Safety device for Ø> 8 mm plates
- S/steel hopper cover
- SRCS wifi control board

Technical specifications

• Model: TC 32 Nebraska Ice
• Power: 1ph watt 1.472 - Hp 2
• 3ph watt 2.205 - Hp 3
• Power source: 1ph/3ph
• Output/h.: kg/h. 500
• Standard plate: ø mm 4,5
• A: mm 236
• B: mm 310
• C: mm 366
• D: mm 558
• E: mm 235
• F: mm 566
• G: mm 670
• Net weight: kg 60
• Shipping: mm 760x640x700
• Gross weight: kg 68
• HS-CODE: 84385000
